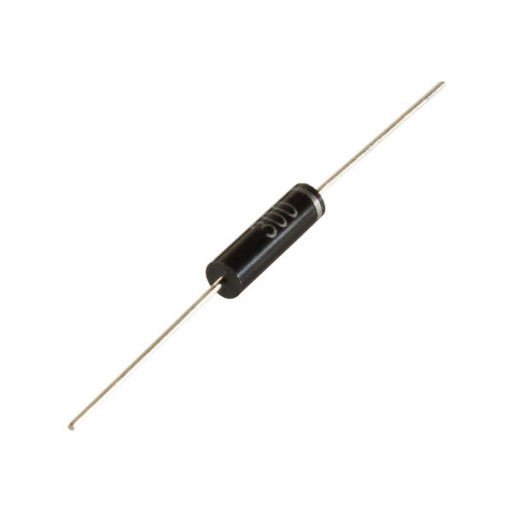

100mA 30KV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 100mA 30KV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CL2FP
Price: 4.32 USD
Availability: InStock

Availability: In stock

$4.32

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	30KV
Average Forward Current	100mA
Maximum Surge Current	10A
Avg. Forward Voltage Drop	44V
Peak Reverse Current	2uA@25°C 15uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ4.3mm×15mm(Φ0.172inch×0.6inches)
Terminals	Axial Lead
