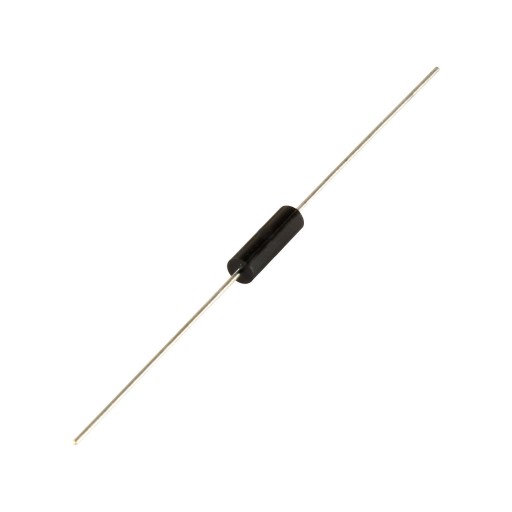

10mA 25kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 10mA 25kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CL79
Price: 1.1 USD
Availability: InStock

Availability: In stock

$1.10

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	25kV
Average Forward Current	10mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	50V
Peak Reverse Current	2uA@25°C 5uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×12mm(Φ0.12inch×0.48inches)
Terminals	Axial Lead
