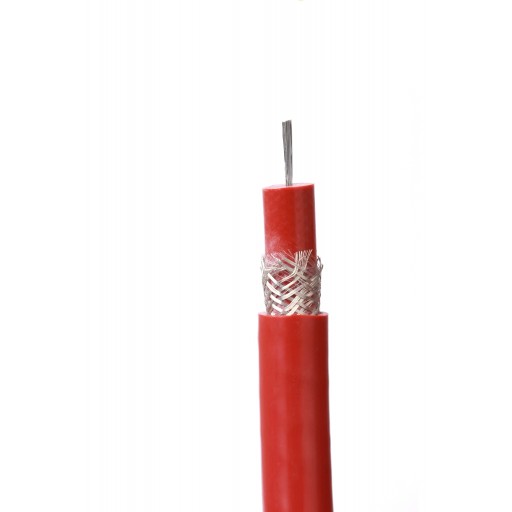

1meter 150KVDC/50KVAC 13AWG Shielded High Voltage Wire Stranded

Name: 1meter 150KVDC/50KVAC 13AWG Shielded High Voltage Wire Stranded
SKU: HF-50
Price: 89.08 USD
Availability: InStock

Availability: In stock

$89.08

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Rated Voltage	150KV
Rated Voltage(AC)	50KVAC
Color	Red
Cross Section(AWG)	13AWG
Overall Diameter	24mm
Conductor Material	silvering electrolytic copper
Shield	silvering electrolytic copper
Insulation Material	Silicon Rubber
Jacket Material	Silicon Rubber
Operating Temperature	-30°C ~ +160°C
Storage Temperature	-60°C ~ +200°C
flame retardancy	ULVW-2
Standard	UL759
Conductor	0.20491
Application	Widely used for transmitting power and signal in various high voltage test equipment, instruments and meters.
Features	high pressure resistant, shielded, wide range of using temperature, long lifespan, soft line body, anti-radiation, moisture resistance, has certain corrosion resistance property for acid, alkali and salt.
Note	The shielding layer with shielded high voltage cable is used for restraining vibration of parallel current, and grounding is forbidden.
