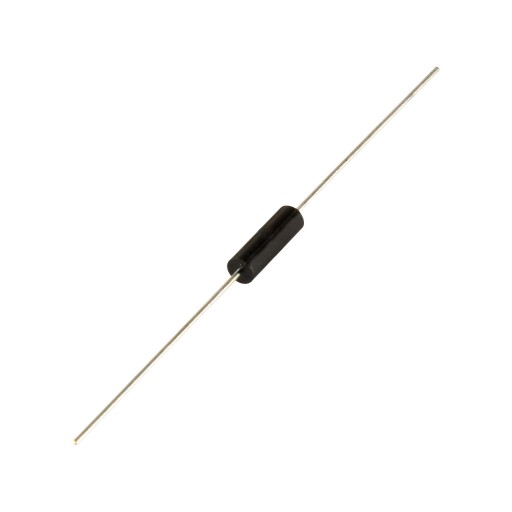

200mA 6kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 200mA 6kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CL2FE
Price: 1.35 USD
Availability: InStock

Availability: In stock

$1.35

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	6kV
Average Forward Current	200mA
Maximum Surge Current	10A
Avg. Forward Voltage Drop	18V
Peak Reverse Current	2uA@25°C 15uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×8mm(Φ0.12inch×0.32inches)
Terminals	Axial Lead
