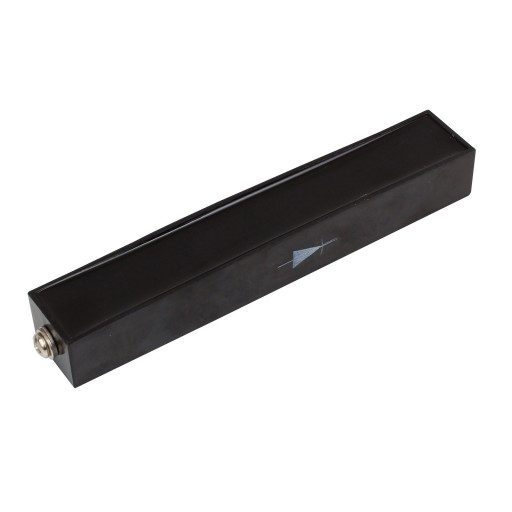

3A 20kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 3A 20kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CLG20KV/3A
Price: 20.78 USD
Availability: InStock

Availability: In stock

$20.78

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	20kV
Average Forward Current	3A
Maximum Surge Current	90A
Avg. Forward Voltage Drop	23V
Peak Reverse Current	10uA@25°C 100uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ150×25×20mm(Φ6inches×1inch×0.8inch)
Terminals	Standard M5 Threads(Included)
