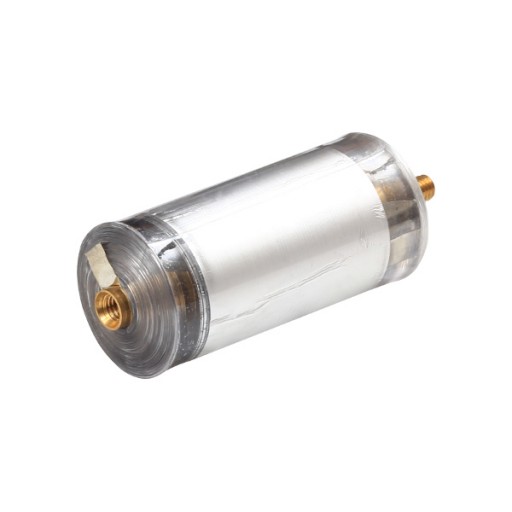

| Rated Voltage | 20kV DC |
|---|---|
| Test Voltage | 24kV DC |
| Capacitance | 5nF |
| Capacitance Tolerance | ± 5% |
| Insulation Resistance | ≥ 2 × 1011Ω |
| Operating Temperature | -10 - +55 °C (14 - 131 °F) |
| Storage Temperature | -10 - +55 °C (14 - 131 °F) |
| Dimensions | Φ30 × 60mm(Φ1.2 × 2.4inches) |
| Terminals | M5 |
| Durability | +55 °C, applied UR 96h; 24h after recovery Capacitance change: ΔC / C ≤ ± (2.5% + 3PF) Insulation resistance: not less than 50% of the prescribed |
| Applications | The product is screws, nuts leads to non-sealed foil structure, Resistant to high voltage, small size and other characteristics. Suitable for electronic Device for filtering, DC pulse voltage doubler circuit, etc., a wide Pan used electrostatic dust, spray and power systems, the Products subject to immersing in pure mineral oil does not contain aromatic The use of an insulating material such as rubber or silicone. |
