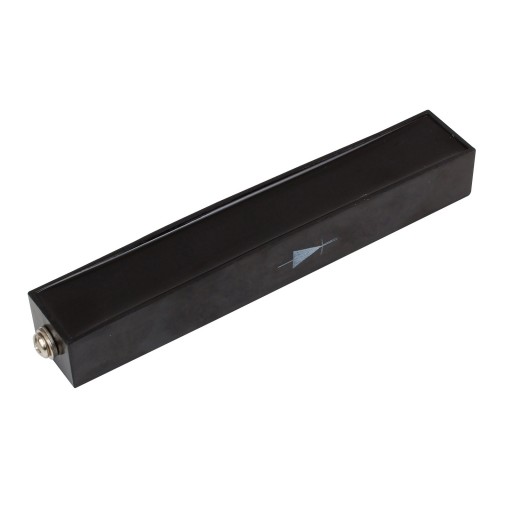

6A 20kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 6A 20kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CLG20KV/6A
Price: 36.85 USD
Availability: InStock

Availability: In stock

$36.85

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	20kV
Average Forward Current	6A
Maximum Surge Current	120A
Avg. Forward Voltage Drop	23V
Peak Reverse Current	20uA@25°C 200uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ220×30×20mm(Φ8.8inches×1.2inches×0.8inches)
Terminals	Standard M5 Threads(Included)
