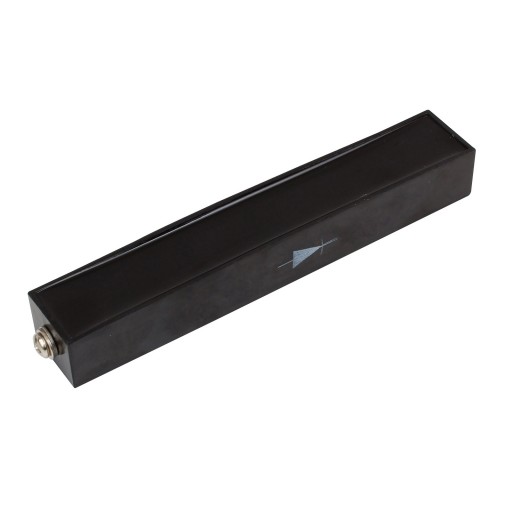

2A 30kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 2A 30kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CLG30KV/2A
Price: 21.25 USD
Availability: InStock

Availability: In stock

$21.25

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	30kV
Average Forward Current	2A
Maximum Surge Current	60A
Avg. Forward Voltage Drop	35V
Peak Reverse Current	10uA@25°C 100uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ120×25×17mm(Φ4.8inches×1inch×0.68inch)
Terminals	Standard M5 Threads(Included)
