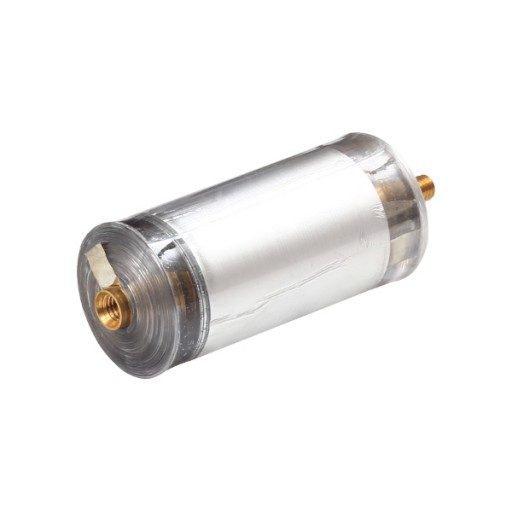

30kV 6800pF High Voltage Polystyrene Film Capacitor

Name: 30kV 6800pF High Voltage Polystyrene Film Capacitor
SKU: CB81-30KV-6800pF
Price: 16.1 USD
Availability: InStock

Availability: In stock

$16.10

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Rated Voltage	30kV DC
Test Voltage	36kV DC
Capacitance	6.8nF
Capacitance Tolerance	± 5%
Insulation Resistance	≥ 2 × 10¹¹Ω
Operating Temperature	-10 - +55 °C (14 - 131 °F)
Storage Temperature	-10 - +55 °C (14 - 131 °F)
Dimensions	Φ38 × 60mm(Φ1.52 × 2.4inches)
Terminals	M5
Durability	+55 °C, applied Rated Voltage 96h; 24h after recovery. Capacitance change: ΔC / C ≤ ± (2.5% + 3PF) Insulation resistance: not less than 50% of the prescribed
Applications	The product is screws, nuts leads to non-sealed foil structure, Resistant to high voltage, small size and other characteristics. Suitable for electronic Device for filtering, DC pulse voltage doubler circuit, etc., a wide Pan used electrostatic dust, spray and power systems, the Products subject to immersing in pure mineral oil does not contain aromatic The use of an insulating material such as rubber or silicone.
