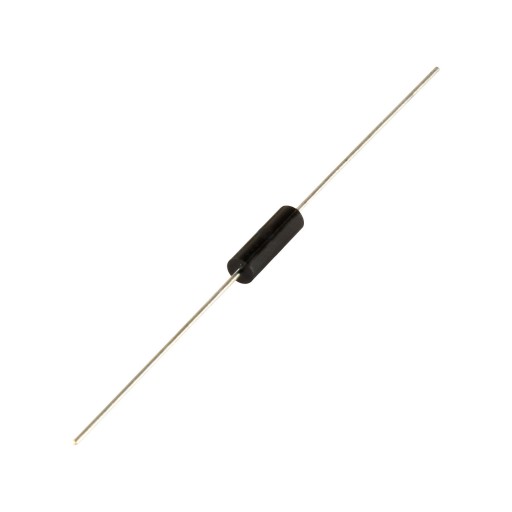

30mA 12kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 30mA 12kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: HVRT120
Price: 0.65 USD
Availability: InStock

Availability: In stock

$0.65

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	12kV
Average Forward Current	30mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	25V
Peak Reverse Current	2uA@25°C 20uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×10mm(Φ0.12inch×0.4inches)
Terminals	Axial Lead
