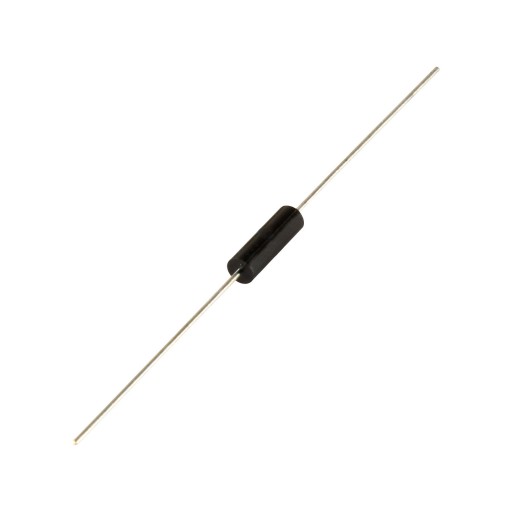

30mA 20kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 30mA 20kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: HVRT200
Price: 1.7 USD
Availability: InStock

Availability: In stock

$1.70

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	20kV
Average Forward Current	30mA
Maximum Surge Current	1A
Avg. Forward Voltage Drop	35V
Peak Reverse Current	2uA@25°C 20uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×12mm(Φ0.12inch×0.48inches)
Terminals	Axial Lead
