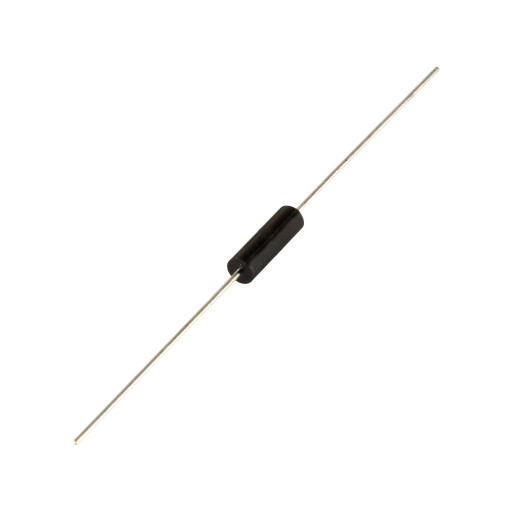

30mA 25kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 30mA 25kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: HVRT250
Price: 2.4 USD
Availability: InStock

Availability: In stock

$2.40

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	25kV
Average Forward Current	30mA
Maximum Surge Current	1A
Avg. Forward Voltage Drop	40V
Peak Reverse Current	2uA@25°C 20uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×12mm(Φ0.12inch×0.48inches)
Terminals	Axial Lead
