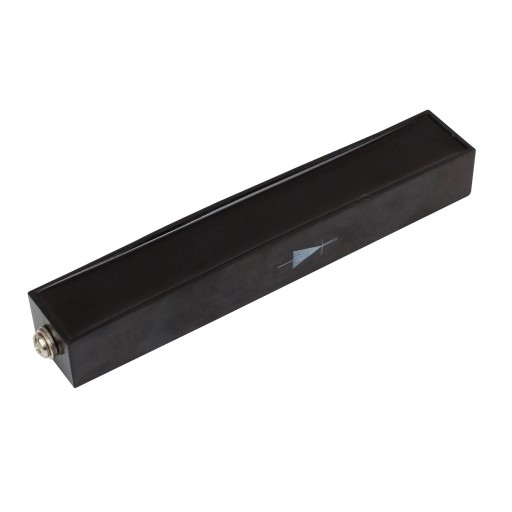

3A 50KV 100ns High Voltage Diode HV Rectifier High Frequency

Name: 3A 50KV 100ns High Voltage Diode HV Rectifier High Frequency
SKU: 2CLG50KV/3A
Price: 34.29 USD
Availability: InStock

Availability: In stock

$34.29

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	50KV
Average Forward Current	3A
Maximum Surge Current	90A
Avg. Forward Voltage Drop	59V
Peak Reverse Current	5uA@25°C 50uA@100°C
Reverse Recovery Time	100ns
Dimensions	220×30×20mm(8.8×1.2×0.8inches)
Terminals	Standard M5 Threads(Included)
