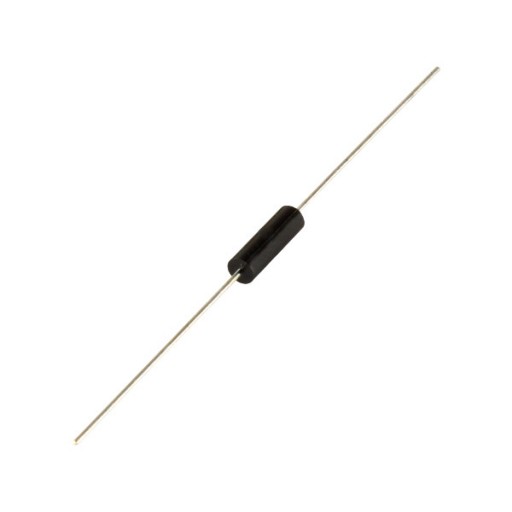

5mA 10kV 100ns High Voltage Diode HV Rectifier High Frequency ESJA52-10

Name: 5mA 10kV 100ns High Voltage Diode HV Rectifier High Frequency ESJA52-10
SKU: ESJA52-10
Price: 0.29 USD
Availability: InStock

Availability: In stock

$0.29

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	10kV
Average Forward Current	5mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	29V
Peak Reverse Current	2uA@25°C 5uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ3mm×10mm(Φ0.12inch×0.4inches)
Terminals	Axial Lead
