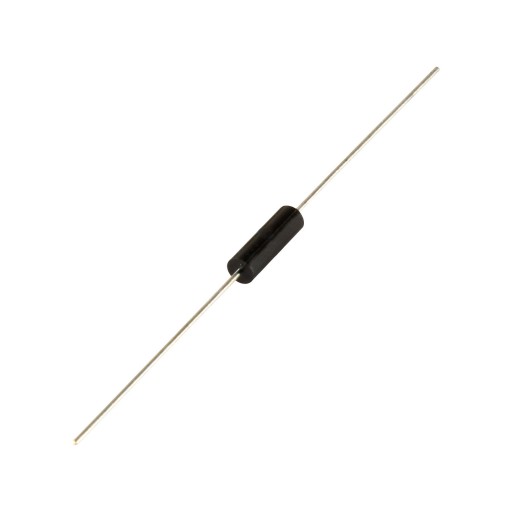

5mA 14kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 5mA 14kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: ESJA53-14
Price: 0.18 USD
Availability: InStock

Availability: In stock

$0.18

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	14kV
Average Forward Current	5mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	40V
Peak Reverse Current	2uA@25°C 5uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ3mm×10mm(Φ0.12inch×0.4inches)
Terminals	Axial Lead
