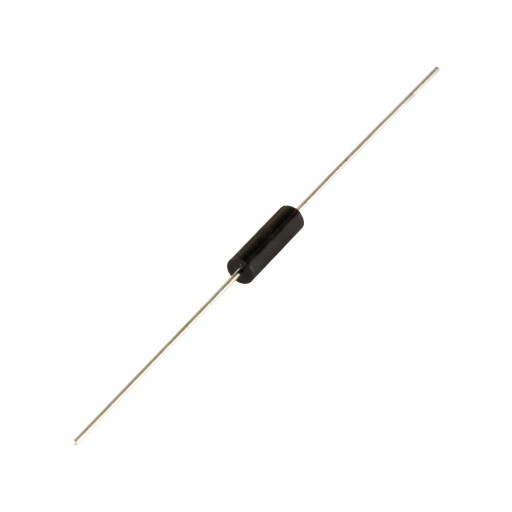

5mA 4kV 100nS High Voltage Diode HV Rectifier High Frequency

Name: 5mA 4kV 100nS High Voltage Diode HV Rectifier High Frequency
SKU: 2CL4
Price: 0.1 USD
Availability: InStock

Availability: In stock

$0.10

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Repetitive Peak Reverse Voltage	4kV
Average Forward Current	5mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	18V
Peak Reverse Current	2uA@25°C 5uA@100°C
Reverse Recovery Time	100nS
Dimensions	Φ2.5mm×6.5mm(Φ0.1inch×0.26inches)
Terminals	Axial Lead
