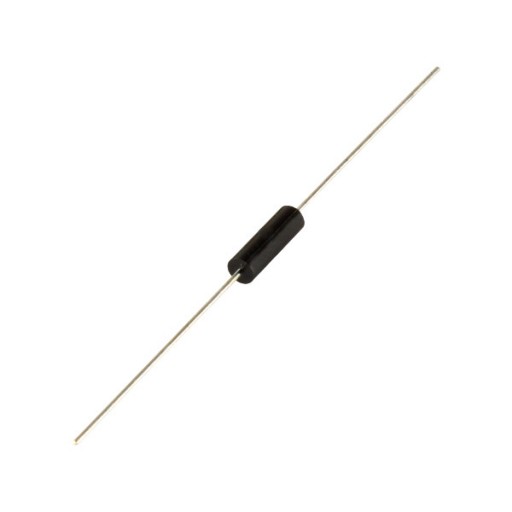

5mA 8kV 100ns High Voltage Diode HV Rectifier High Frequency ESJA54-08

Name: 5mA 8kV 100ns High Voltage Diode HV Rectifier High Frequency ESJA54-08
SKU: ESJA54-08
Price: 0.25 USD
Availability: InStock

Availability: In stock

$0.25

Qty:

-OR- -OR-

Product Description

Repetitive Peak Reverse Voltage	8kV
Average Forward Current	5mA
Maximum Surge Current	0.5A
Avg. Forward Voltage Drop	24V
Peak Reverse Current	2uA@25°C 5uA@100°C
Reverse Recovery Time	100ns
Dimensions	Φ3mm×8mm(Φ0.12inch×0.32inches)
Terminals	Axial Lead
