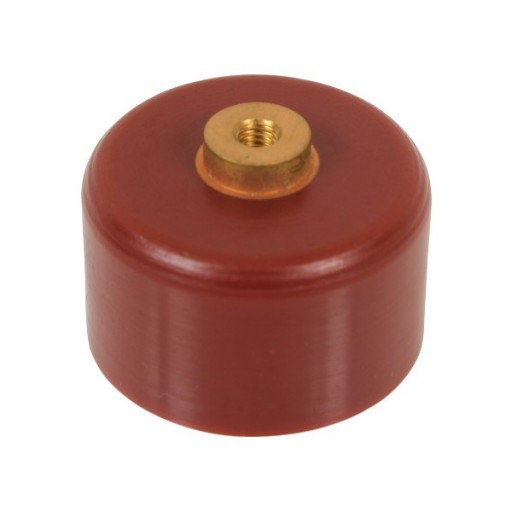

High Voltage Capacitor 1000pF@12kVAC made from Ceramic dielectric in Doorknob shape with epoxy resin encapsulated.
| Rated Voltage | 12kVAC |
|---|---|
| Capacitance | 1000pF |
| Capacitance Tolerance | ± 20% |
| Inductance | < 25nH |
| Insulation Resistance | 10000MΩ min. |
| Dissipation Factor | tgδ ≤ 0.004 |
| Temperature Characteristics | +22% ~ -33% -30°C ~ +85°C |
| Dimensions | Φ45mm×33mm |
| Terminals | M4×Φ12mm w/2 Bolts and 2 Washers |
| Features | Epoxy resin encapsulated Small size Low dissipation factor Vacuum mold |
| Applications | Gas laser DC HV power supplies Lightning arresters, voltage distribution systems Electron microscopes, synchroscopes Electrostatic coating machines |
