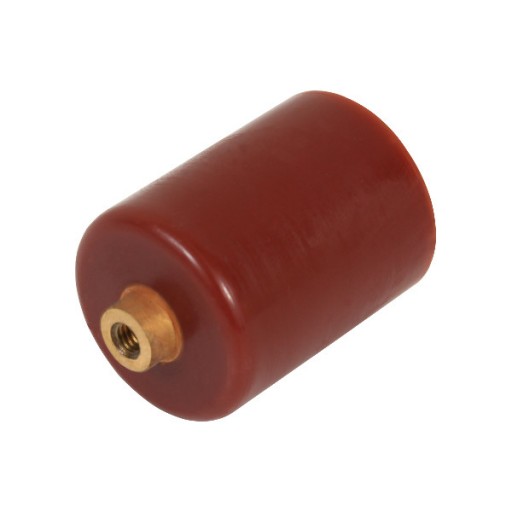

High Voltage Capacitor 400pF@40kV made from Ceramic dielectric in Doorknob shape with epoxy resin encapsulated.
| Rated Voltage | 40kV |
|---|---|
| Capacitance | 400pF |
| Capacitance Tolerance | ± 20% |
| Inductance | < 25nH |
| Insulation Resistance | 10000MΩ min. |
| Dissipation Factor | tgδ ≤ 0.004 |
| Temperature Characteristics | +22% ~ -33% -30°C ~ +85°C |
| Dimensions | Φ26.5mm×30.5mm |
| Terminals | M4×Φ8mm w/2 Bolts and 2 Washers |
| Features | Epoxy resin encapsulated Small size Low dissipation factor Vacuum mold |
| Applications | Gas laser DC HV power supplies Lightning arresters, voltage distribution systems Electron microscopes, synchroscopes Electrostatic coating machines |
