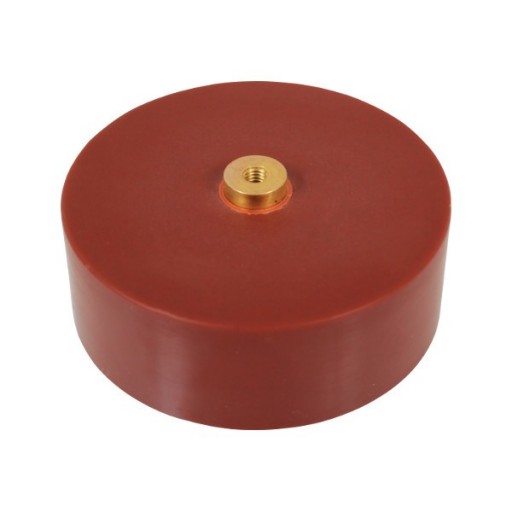

High Voltage Capacitor 5600pF@40kV made from Ceramic dielectric in Doorknob shape with epoxy resin encapsulated.
| Rated Voltage | 40kV |
|---|
| Capacitance | 5600pF |
| Capacitance Tolerance | ± 20% |
|---|
| Inductance | < 25nH |
|---|
| Insulation Resistance | 10000MΩ min. |
|---|
| Dissipation Factor | tgδ ≤ 0.004 |
| Temperature Characteristics | +22% ~ -33%
-30°C ~ +85°C |
|---|
| Dimensions | Φ80mm×26mm |
|---|
| Terminals | M5×Φ12mm w/2 Bolts and 2 Washers |
|---|
| Features | Epoxy resin encapsulated
Small size
Low dissipation factor
Vacuum mold |
|---|
| Applications | Gas laser
DC HV power supplies
Lightning arresters, voltage distribution systems
Electron microscopes, synchroscopes
Electrostatic coating machines
|
