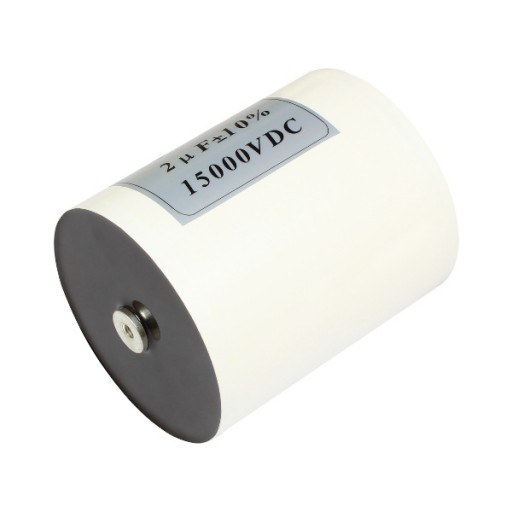

High Voltage Capacitor High Voltage Film Capacitor 2uF 15kV

Name: High Voltage Capacitor High Voltage Film Capacitor 2uF 15kV
SKU: CPP15KV205
Price: 441 USD
Availability: InStock

Availability: In stock

$441.00

Qty:

-OR- -OR-

Product Description Tags (0) Reviews (0) Questions (0)

Rated Voltage	15kV
Test Voltage	1.2U_R-1.5U_R(30s)
Capacitance	2uF
Capacitance Tolerance	+/- 10%
Dissipation Factor	tgδ ≤ 0.001(20°C 1KHZ)
Insulation Resistance	≥50000MΩ(20°C, 2min, 500V)
I _p-p	-
I _rms	3000A
Dimensions	Φ123mm × 142mm
Terminal	M8
Operating Temperature	Operating at the rated voltage from -55°C - +65°C,Derating by 25% of rated voltage from +65°C - +85°C
